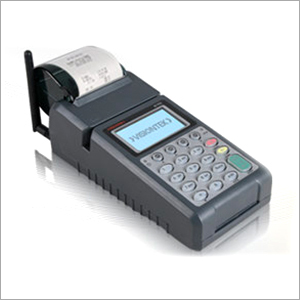

Transaction Terminals System

Transaction Terminals System
Transaction Terminals System
Product Code : 92 POS
Brand Name : ORIGIN TECHNOLOGY ASSOCIATE
Product Description

With the help diligent and highly qualified team of professionals, we are engaged as the distributors of Transaction Terminals System from a known number of years in the past. Known for its tough performance and sturdy designs, these products have wide applications in the inventory management, retail & FMCG, medical & healthcare industries. Also, this 92 POS transaction terminals system is manufactured on our vendors end. Furthermore, we are offering all these products at very reliable and competitive prices.

Features:

  • Optimum performance
  • Superior quality
  • Fine finish
  • Used in banking industries

Technical Specifications :

Processor

32 bit ARM Core CPU @ 70MHz

Memory

Flash: 16 MB; SD RAM: 32MB

Software

LINUX Operating System Easy to use SDK and debugging tools

Keypad

19 Backlit keys including 4 function keys and 3 command keys Internal PIN PAD for PIN entry (DES / DUKPT encryption)

Display

128 x 64 pixel Graphic LCD with back-lighting; supports 8 lines x 21 characters and graphics

Printer

Thermal graphic printer, Clam shell Design; 8 dots/mm: 10 lines/second: 57mm (2.25 in.) wide paper

Magnetic Swipe Card Reader

Bi-directional swipe, Tracks 1 & 2

Smart Card Reader

ISO 7816, EMV-certified for Level 1

SAM Card Reader

2 SAMS

Peripheral Ports

  • 1x RS-232;
  • 1x USB Slave
  • 1x USB Master

Communication Modules

  • PSTN Dial-up; 300 / 1200 / 2400 bps synchronous or asynchronous; Standard RJ45 connection
  • LAN 10 BASE-T; 10Mbps; Standard RJ45 connection
  • GSM / GPRS, (Dual band) (SMA female antenna connection)
  • CDMA 1X2000; SMA female antenna connection
  • Wi-Fi 802.11b; SMA female antenna connection
  • Combo module: GSM / GPRS + PSTN module
  • Combo module: GSM / GPRS + Ethernet module

Financial Transaction Protocol

ISO 8583 library

Power Adaptor

AC input 100 - 240V, 50/60Hz DC output 9V, 2.2A

Battery

Li-ion 7.4V, 1.8Ah

Enclosure

ABS+PC

Operating Temperature

0oC to 55oC

Humidity

95% RH non condensing

Immunity

  • IEC 61000-4-2, Level 3
  • IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
  • IEC 61000-4-8, IEC 61000-4-9, all Level 4

Safety

CE Certified

Dimensions (mm x mm x mm)

245 L x 96 W x 85 H

Weight

750 gms
